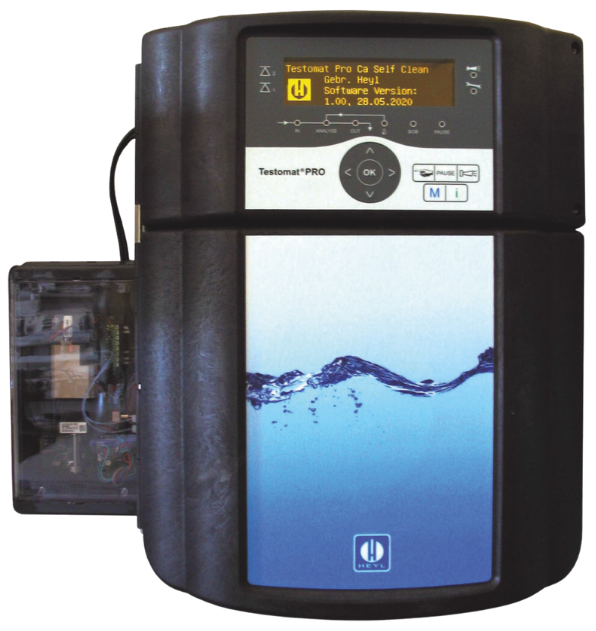

Testomat PRO CA
Highly Accurate Online Analyzer for Calcium Hardness
Key features:
- Continuous iron monitoring every 1 – 90 minutes
- Real-time readings in display
- Low maintenance
- Range of 0 – 587 ppm CaCO3 total hardness
- Integrated SD card to store readings
- Self-calibrating
- Low water and reagent consumption
- Monitoring of two measuring points
- Self clean function
The Testomat PRO® CA self-clean automatically determines and monitors calcium hardness in water by titration.
The measuring range is 0 – 587 ppm CaCO3. All readings and messages, such as exceeding limit values, can be received via email or via the web server, in addition to the 4-20mA and dry signal output.
The Testomat PRO® CA self-clean ensures water quality, for example, when blending drinking water from several sources.
Technical Data
| Measuring method | Titration |
| Self-calibrating | Yes |
| Power supply | 24 VAC OR 120 VAC OR 240 VAC |
| Power consumption | Max. 50 W |
| Output signal | 4-20 mA and dry signal |
| Degree of protection | IP 44 |
| Ambient temperature | 50 – 104°F (10 – 40°C) |
| Dimensions (W x H x D) | 11 x 14 x 6 inch |
| Weight | 18 lbs |
| Country of origin | Germany |
Water Supply
| Operating pressure | 4.4 to 15.4 psi (0.3 to 1 bar) OR 14.5 to 116 psi (1 to 8 bar) |
| Min. water flow | 14 fl oz (400ml) per minute |
| Water inlet | 1/4-inch quick connect fitting |
| Drain | 1/2 tube |
| Water temperature | 50 – 104°F (10 – 40°C) a cooler can be installed for temperatures above 104°F |
